High Performance Machines Tools

    for Rail Industry Manufacturing

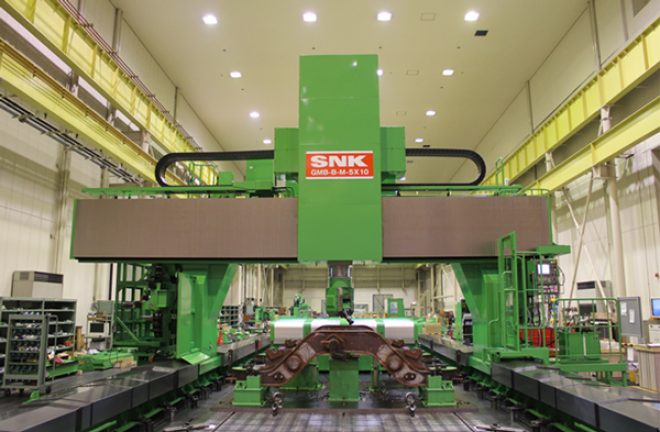

    GMB

    GMB

    Gantry Mill

    • The ultimate machine for Bogie Frame machining
    • High-productivity Dual Work Zone design permits work set-up on one zone while machining on other zone
    • AAC and ATC designed to service both work zones

    RB-5MII

    5-Face Machining Center

    • Extra-wide and extra-long table
    • Attachments designed for machining tight workpiece areas and varied faces found on Bogie Frames
    • Cost-effective choice for Bogie Frame machining

    HGM Gantry Series

    • Perfect for machining large multi-faceted parts
    • Extraordinary 2,400 ipm feedrates
    • Simultaneous 5-axis contouring capability
    • High-power, high-speed spindle

    EVER Series

    Gantry Mills

    • Compact design saves floor space
    • High-rigidity
    • Flexible in application
    • Exceptional acceleration and speed

    TRT 314

    Horizontal Machining Center

    • Ideal for machining complex surfaces
    • High-volume chip removal
    • Available with traversing table as well as rotary table
    • Compact design, full enclosure

    WL 1100

    Wheel Thread Lathe

    • Performs automatic machining in a single set-up
    • Easy workpiece loading and unloading
    • Simultaneous machine threading capability of both L/R wheels available

    VT 1100

    Vertical Lathe

    • Performs Boring, Turning and Honing
    • Ideal for turning of wheel faces and boss holes
    • Small footprint

    Wheel Center Lathe

    • Saves time – Can process wheel assemblies without removal of Brake Disk, Gearbox and even 1 wheel

    Brake Disk Lathe

    • Simultaneous machining of left and right brake disk surfaces assures optimum parallelism
    • Features automatic processing system including automatic measurement

    Automatic Rail Machining System

    • Designed for continuous rail processing
    • Dynamic Automatic Fixtures assure interference-free machine performance
    • Rail stocker autoloader for trouble-free continuous operation

    Rail Bend CorrectionSystem

    • Extra long table accommodates long rail sections
    • Special shaped tooling and robust fixturing permits machining with a high-torque spindle
    • SNK “Bend Correction Function” automatically measures the amount of rail bend to milling required
