High-Performance

    Aluminum Ingot Scalping Machines

    Aluminum-Scalpers-Shin-Nippon

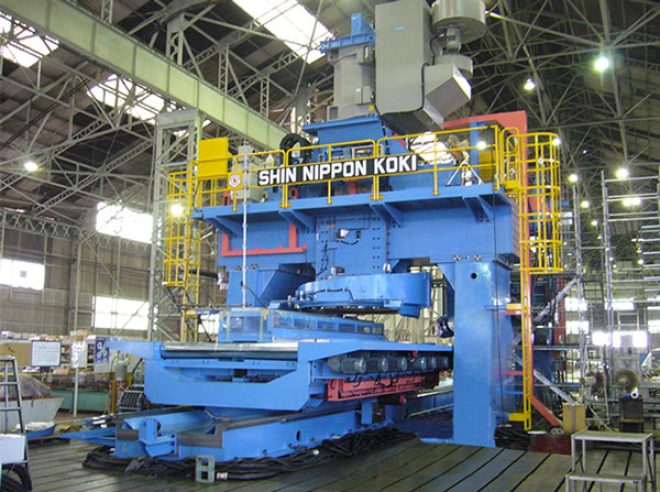

    The SNK MS-24

    Aluminum Ingot Scalper System delivers these key benefits:

    • Optimum production productivity
    • Production cost savings
    • Superior machining quality (mirror finish)
    • Environmental protection
    • Energy savings

    SNK MS-24

    Expanded Cutting Capability

    In addition to precise top and bottom face machining, the MS-24 provides for accurate machining of the longitudinal sides of the ingot. Bevel cutting capability is also available. The side cutters have dedicated chip collection devices.

    SNK MS-24

    Expanded Cutting Capability

    In addition to precise top and bottom face machining, the MS-24 provides for accurate machining of the longitudinal sides of the ingot. Bevel cutting capability is also available. The side cutters have dedicated chip collection devices.

    SNK

    Streamlined Work Handling

    The infeed table provides for easy loading of the workpieces and feeds ingots into the machining work envelope. The outlet table facilitates easy work unloading after machining.

    Optional Turn-Over Device

    The optional workpiece turn-over device prepares the ingot for bottom face processing.

    SNK

    Efficient Spindle Design & Cutter System

    Cartridge type cutting inserts streamline insert exchange
    and simplify cutting depth adjustment.

    • Vertical spindle: 2400mm (94.5”) dia. / 20 blades
    • Horizontal spindles: Two 400mm (15.75) dia. / 6 blades each head
    • Spindle runs at 100rpm during standby – saves energy

    SNK

    Efficient Spindle Design & Cutter System

    Cartridge type cutting inserts streamline insert exchange and simplify cutting depth adjustment.

    • Vertical spindle: 2400mm (94.5”) dia. / 20 blades
    • Horizontal spindles: Two 400mm (15.75) dia. / 6 blades each head
    • Spindle runs at 100rpm during standby – saves energy
    finish-quality

    SNK

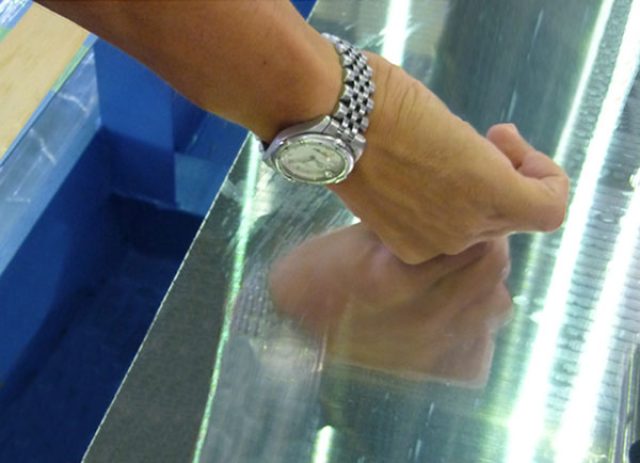

    Superior Machined Finish Quality

    The high-horsepower, high-speed low torque spindle features cutting speeds of 3,000 to 4,000 m/min (118,110 to 157,480 ipm) surface speed.Cutting feedrate is 500 to 7,000 mm/min (19 to 275 ipm). Mirror finish surfaces are attainable under ideal cutting conditions.

    SNK

    High-Performance
    Chip Management System

    99% of chips are collected by the mantel located above the milling head. Remaining chips are pushed into a chute by a table stroke/scraper system. Switchable chip chutes assure varied materials are kept separate. In addition, a high efficiency dust collector minimizes the release of aluminum into the air.

    SNK

    High-Performance
    Chip Management System

    99% of chips are collected by the mantel located above the milling head. Remaining chips are pushed into a chute by a table stroke/scraper system. Switchable chip chutes assure varied materials are kept separate. In addition, a high efficiency dust collector minimizes the release of aluminum into the air.
